Styleworx Hilux n70 raised towbar bracket

Styleworx raised towbar brackets to suit Toyota Hilux n70 2005-2015 Lifts tow bar 150mm

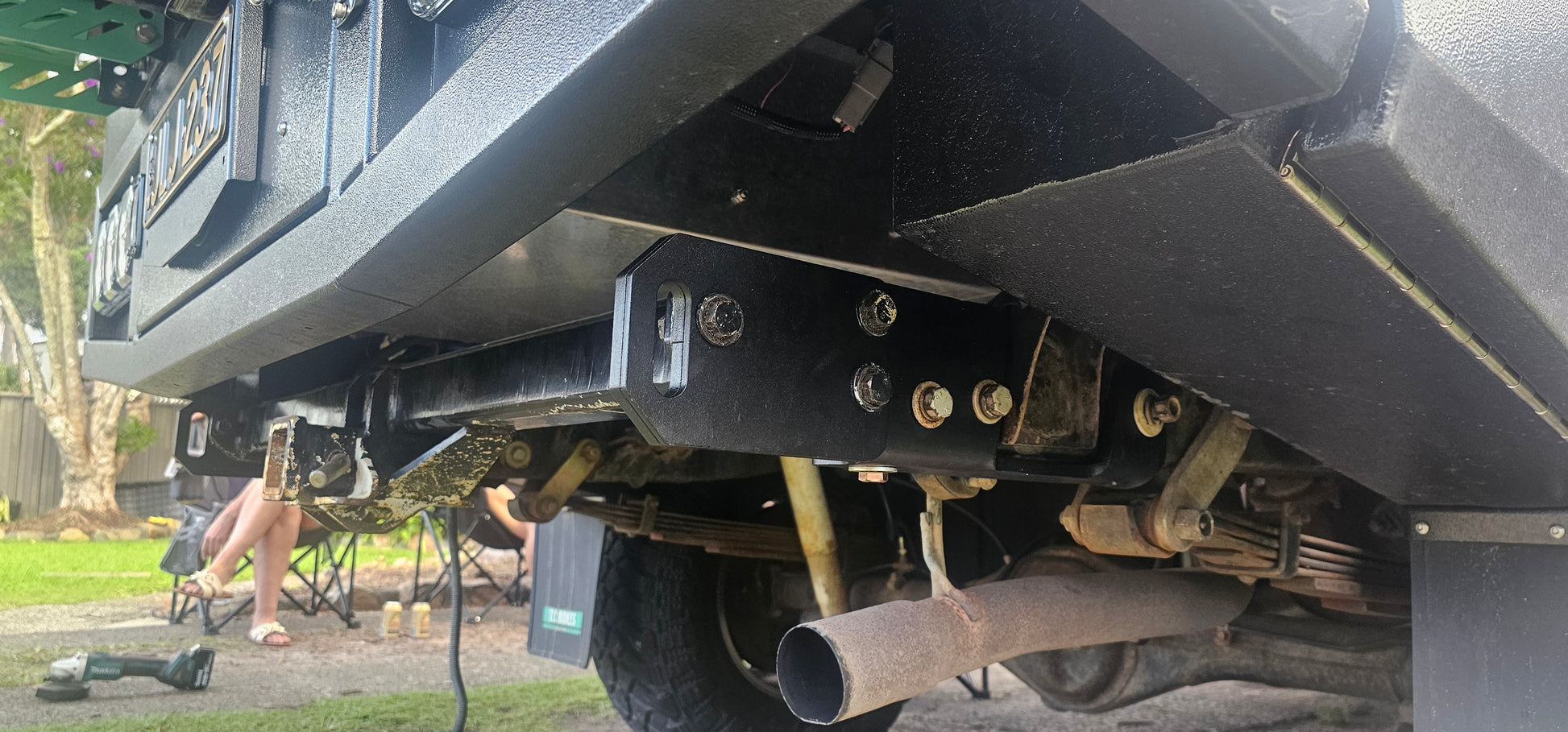

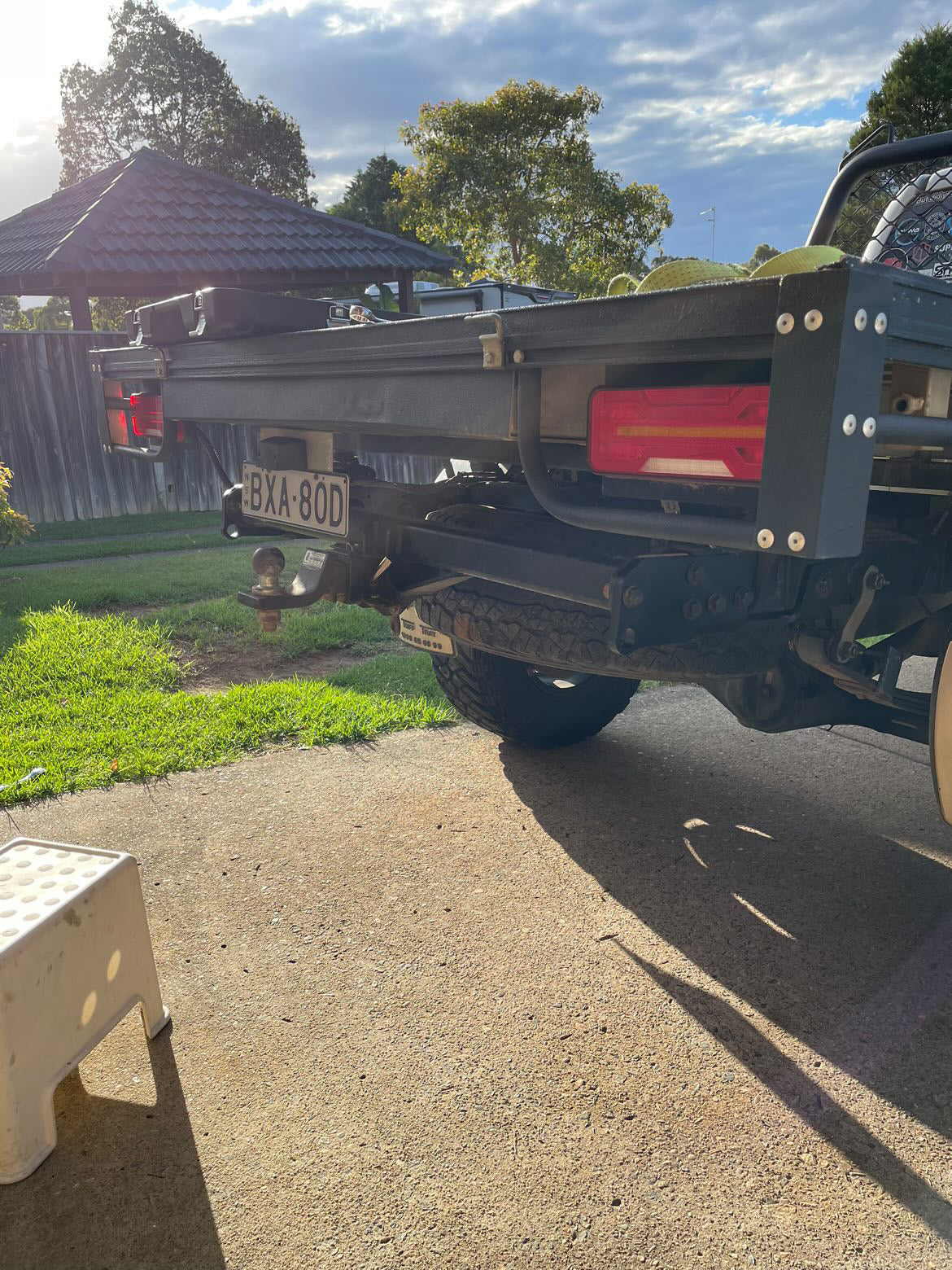

CAD designed and laser cut out of 10mm 250MPA steel, our brackets will increase the departure angle of your Toyota Hilux. These Styleworx brackets are the perfect modification for N70 Hilux's that have been tub chopped or have had a tray fitted.
Our brackets have been designed as a visual modification to lift the tow bar in line with the chassis rails.

Styleworx wanted to create the strongest towbar lift brackets for n70 hilux's on the market. We have down this by creating a fold in the plate design, which picks up an extra mounting fixture. Our competitors only use 3 bolts, where our design has an extra point on a different axis, allowing forces that are exerted on the towbar to be shared across a larger amount of area on the chassis.

We now also offer an extra recovery point plate with our towbars which is 5mm thick steel. Adding this to the 10mm thick towbar bracket increases overall thickness to 15mm. This bracket can also double as a mounting point for tube work and bumper mounting. Weld directly to the tab, which allows you to remove separately from the towbar.

The brackets have an inbuilt recovery point.**

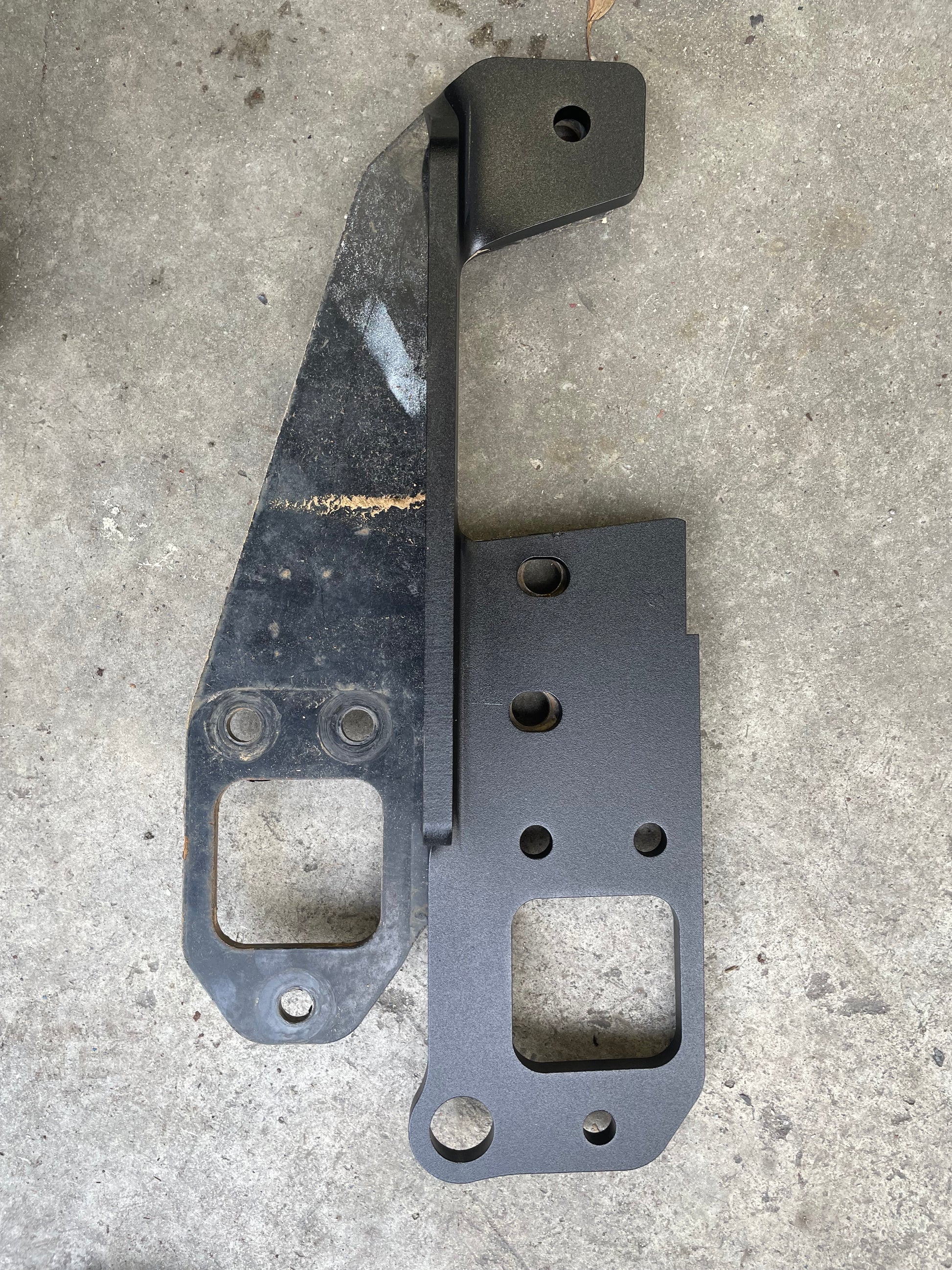

The brackets utilizes many design cues that the factory Toyota brackets used to ensure it meets, if not exceeds structural integrity.** (Factory brackets are 6mm steel plate whereas our brackets are 10mm plate. Due to the bracket moving the fulcrum point of the tow bar, it is advised you contact an engineer to certify this modification.)
The brackets will be powder coated satin black.

All raised towbar brackets can take up two 2 weeks to ship from date of purchase.

**NOTE: The built in recovery points are not rated recovery points. Styleworx accepts no liability for injury or damage caused to persons or vehicles as a result of any product failure associated with or in connection to these brackets. By purchasing these brackets, you expressly acknowledge the existence of this exclusion clause and accept that it is solely your responsibility to ensure this product is used in a safe and cautious manner, and that the onus for any injury or damage caused to persons or vehicles is solely your responsibility.
Styleworx strongly recommends that you seek advice from an accredit engineer before using this product for its intended purpose.**
