Styleworx Tray back raised towbar brackets suit Bt50/Ranger

Lead time for towbar brackets is approximately 10 business days to pack and ship. Please contact us to check stock level and lead time.

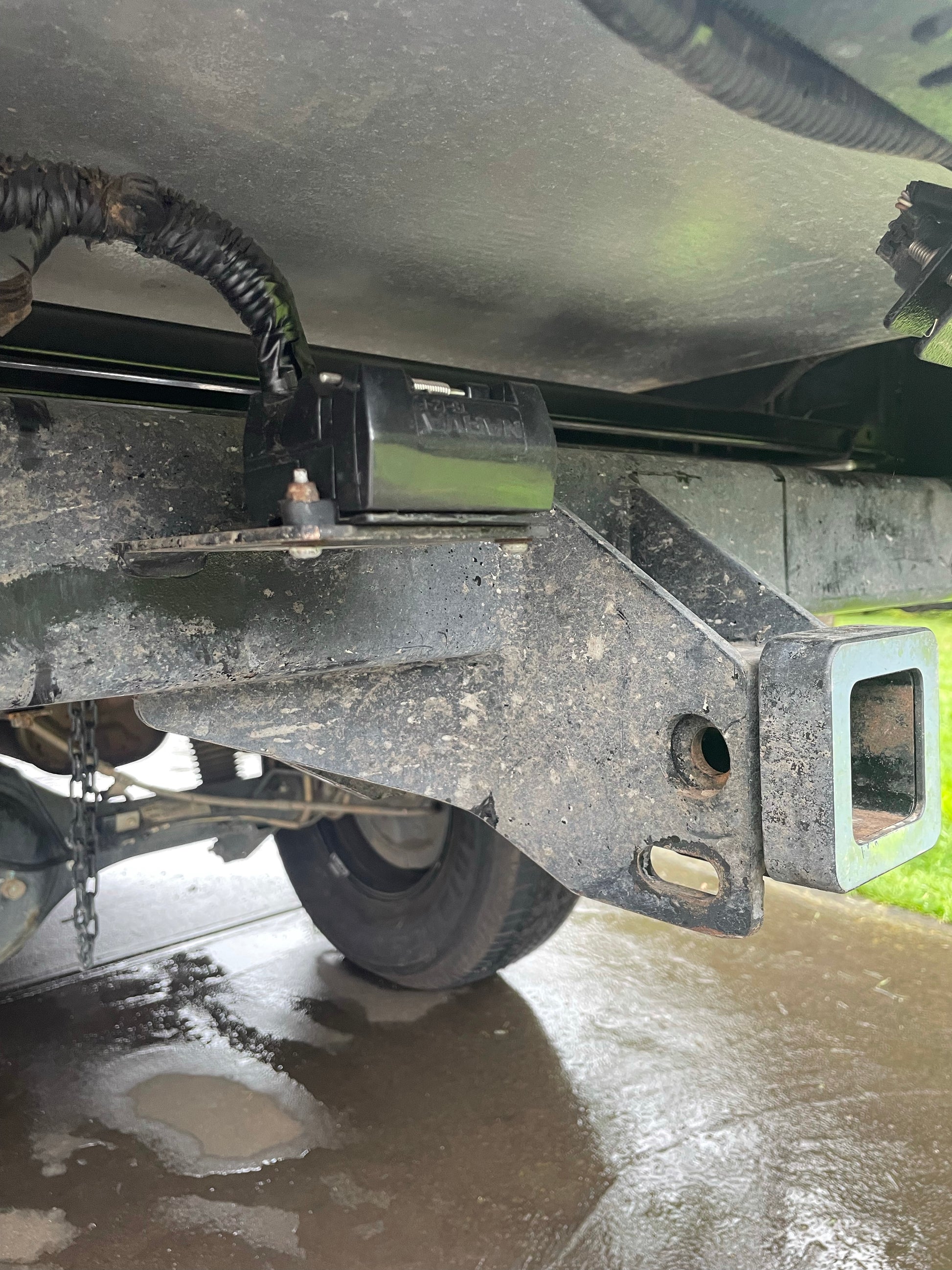

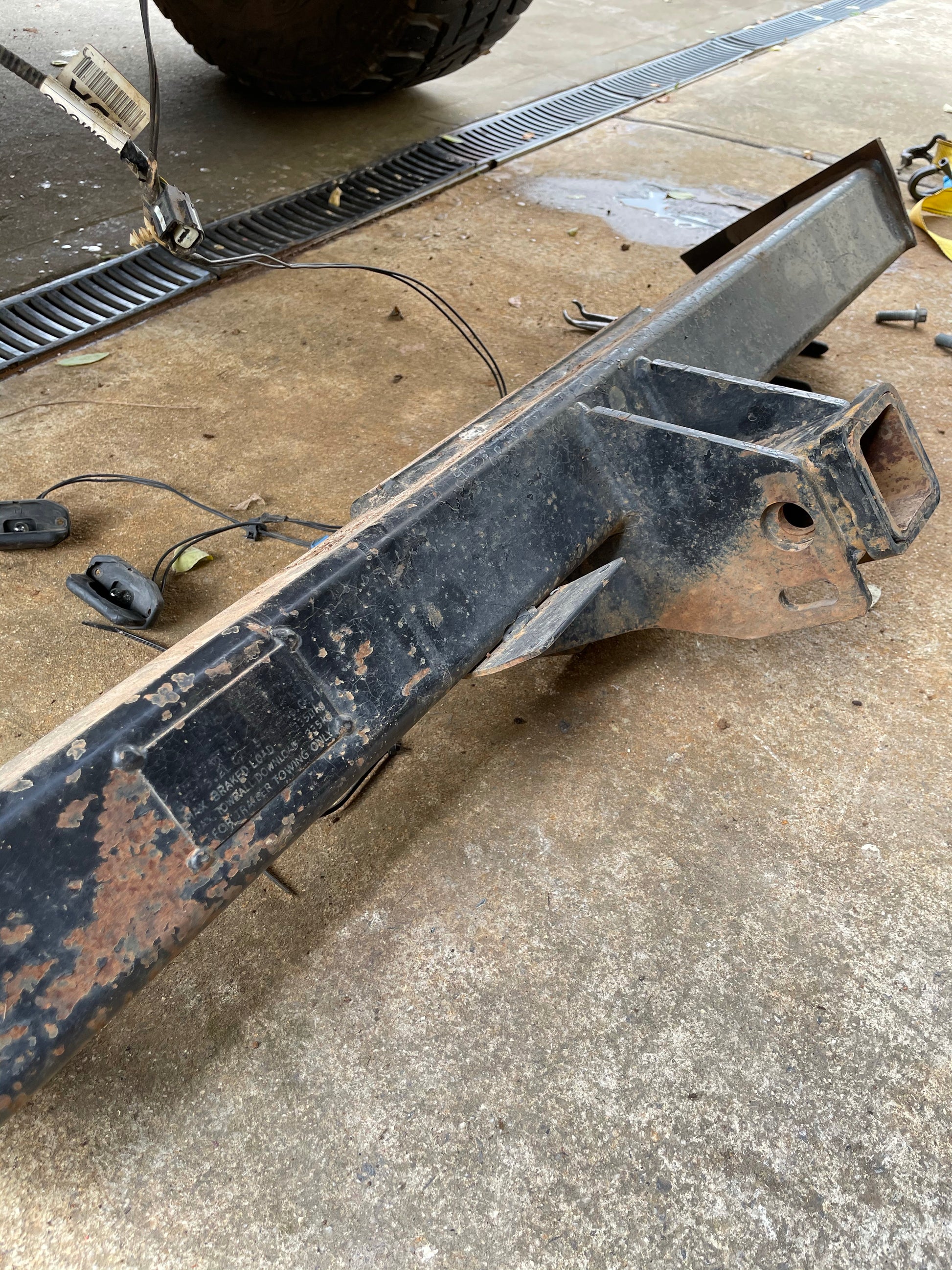

These brackets are to suite Mazda Bt50 straight towbar from years 2011 to 2019 which were fitted to tray back Bt50s. Mazda has two types of bolted towbars. Make sure you have the correct style before purchasing. Photo of the straight towbar in photos. My sample towbar has been cut so ignore that.

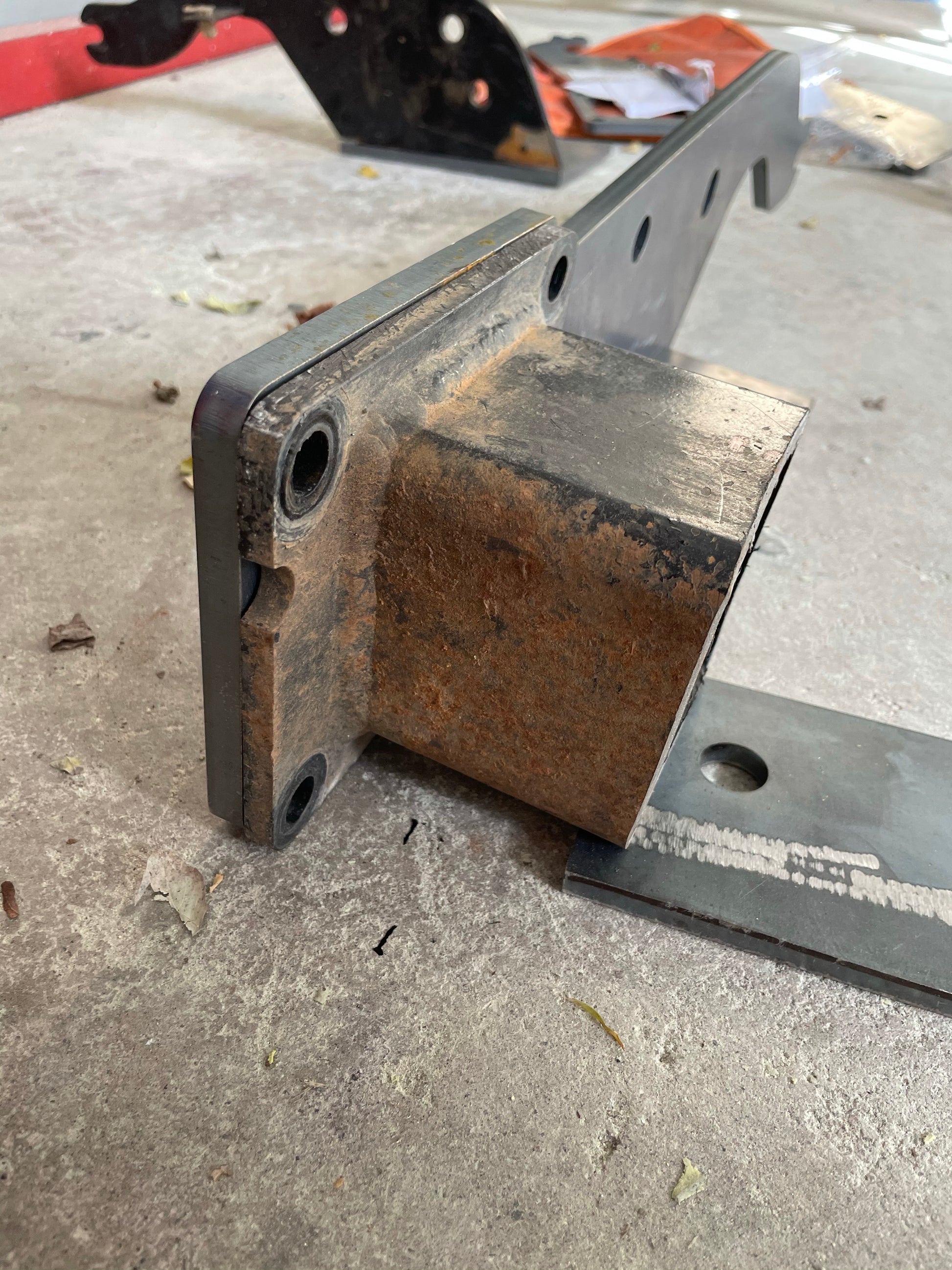

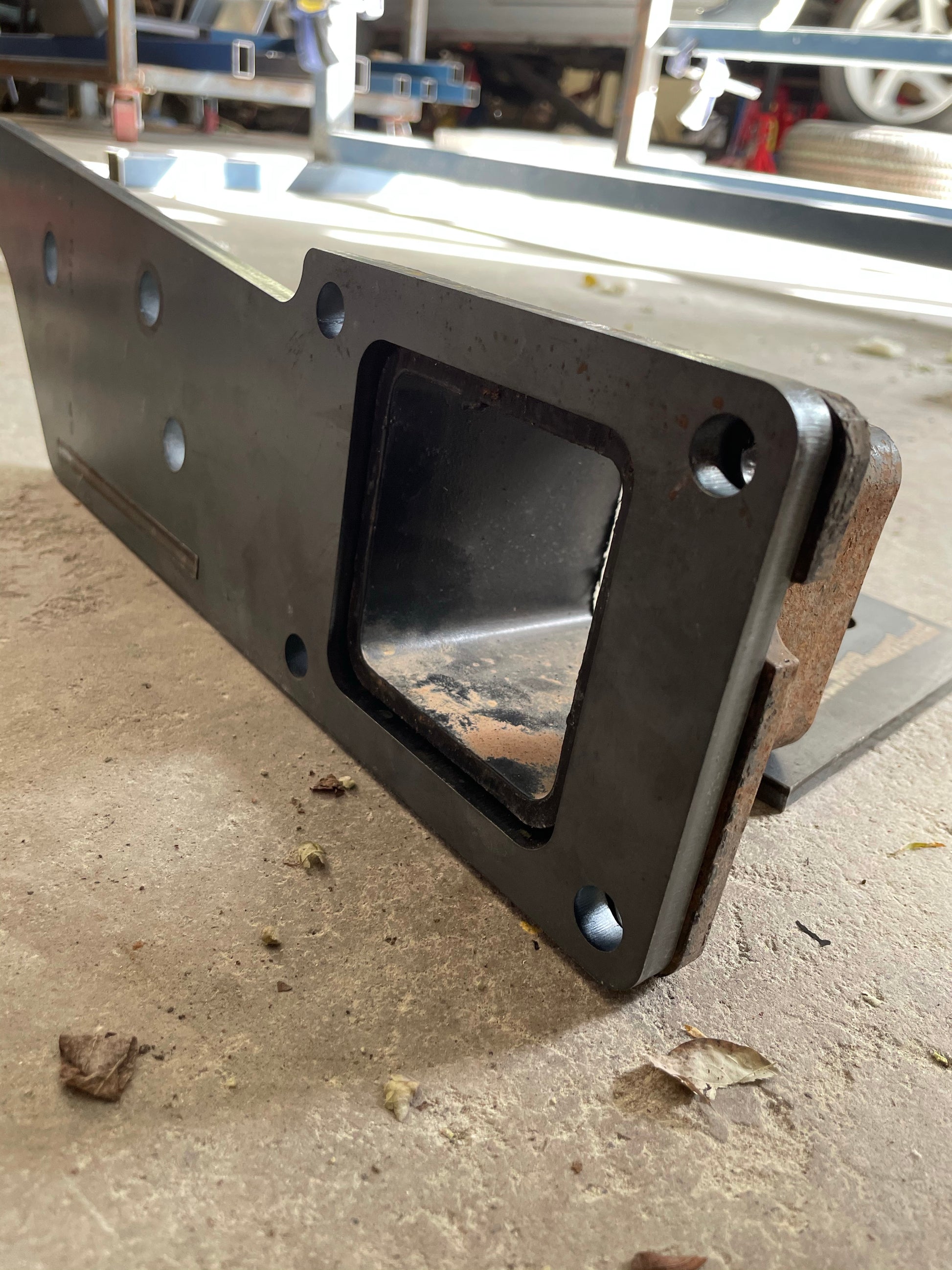

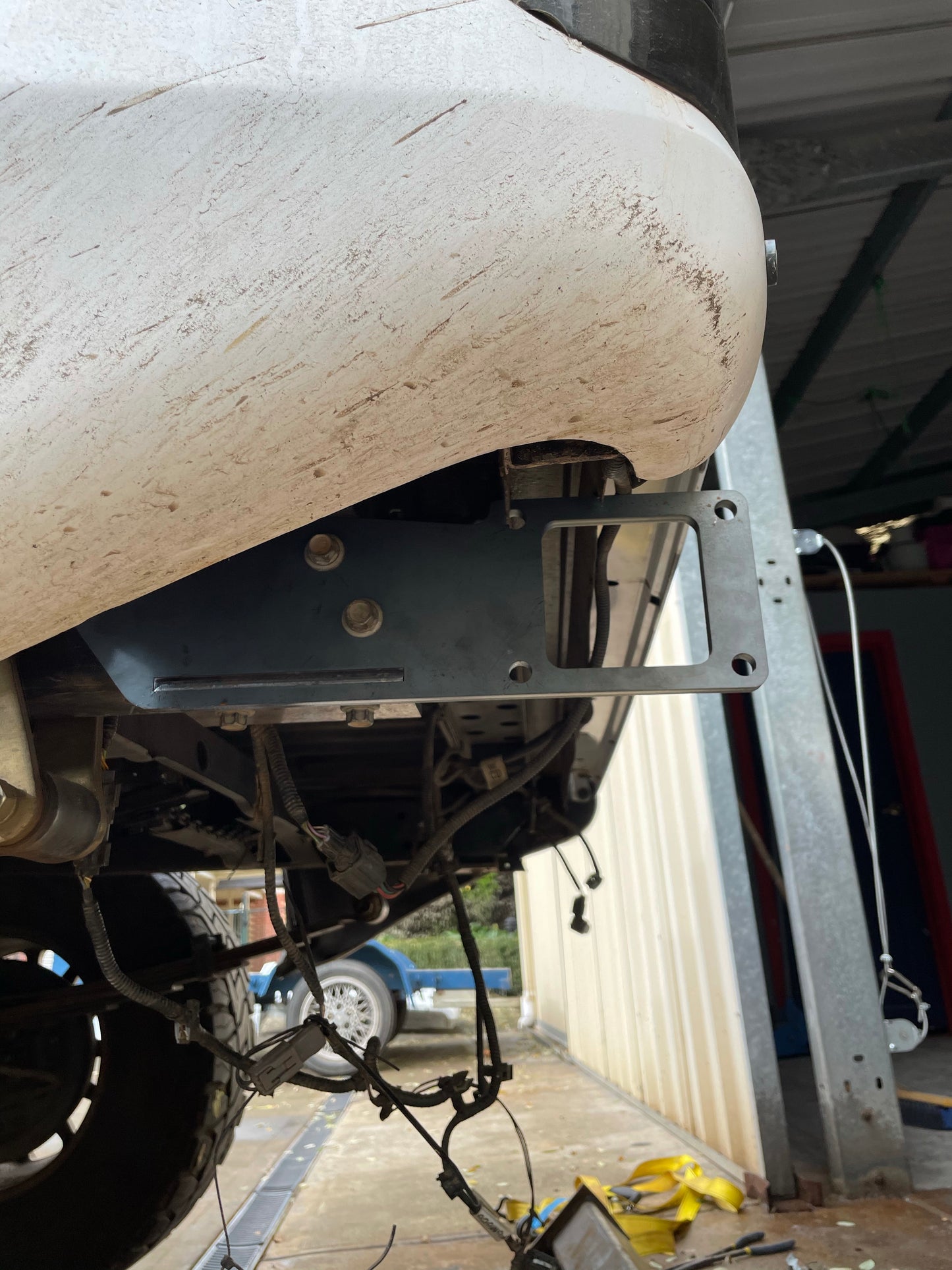

CAD designed and laser cut out of 10mm 250MPA steel, our brackets will increase the departure angle of your Mazda bt50 or Ford ranger px series.

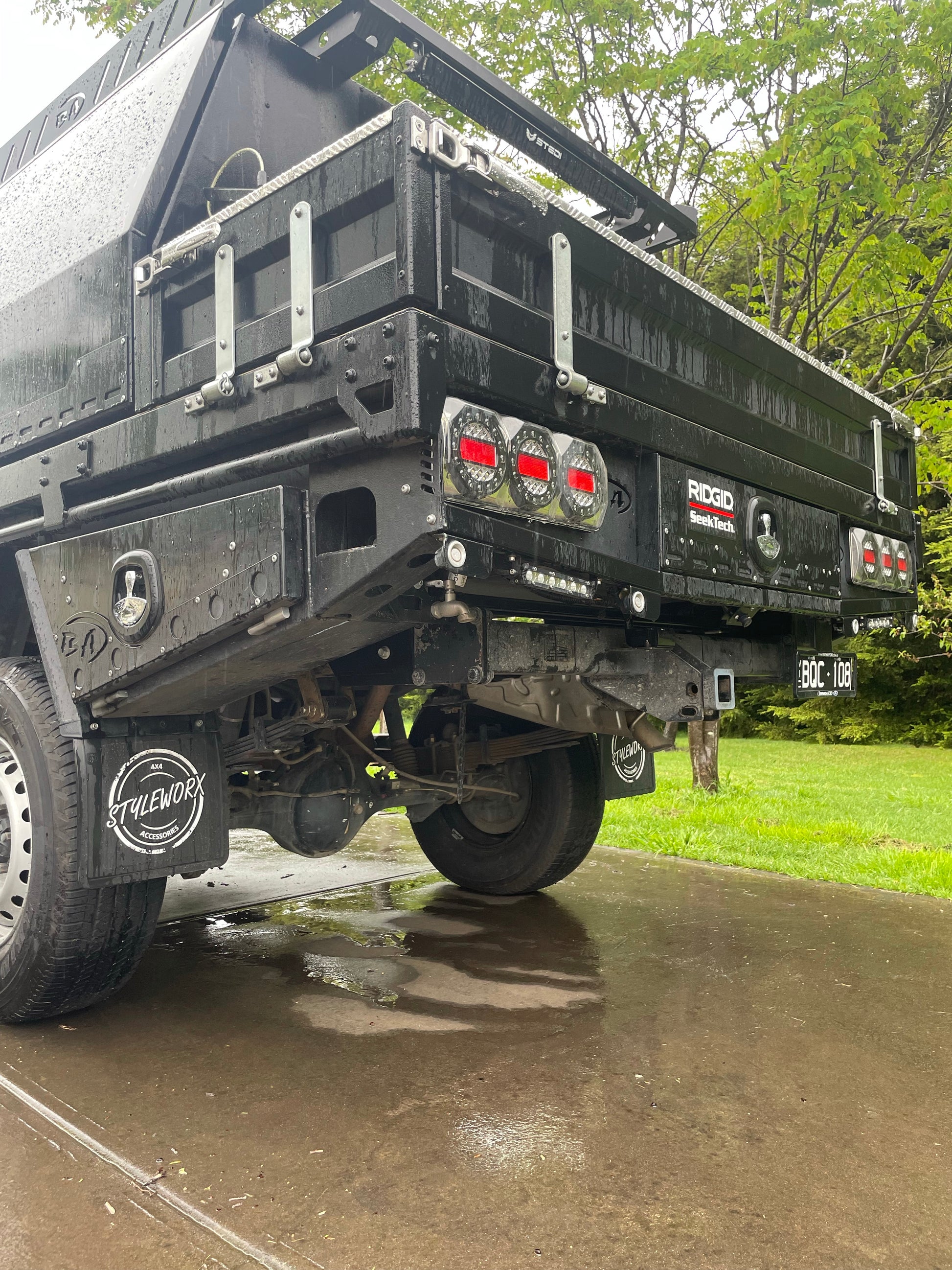

These Styleworx brackets are the perfect modification for Rangers/Bt50 that have been tub chopped or have had a tray fitted.

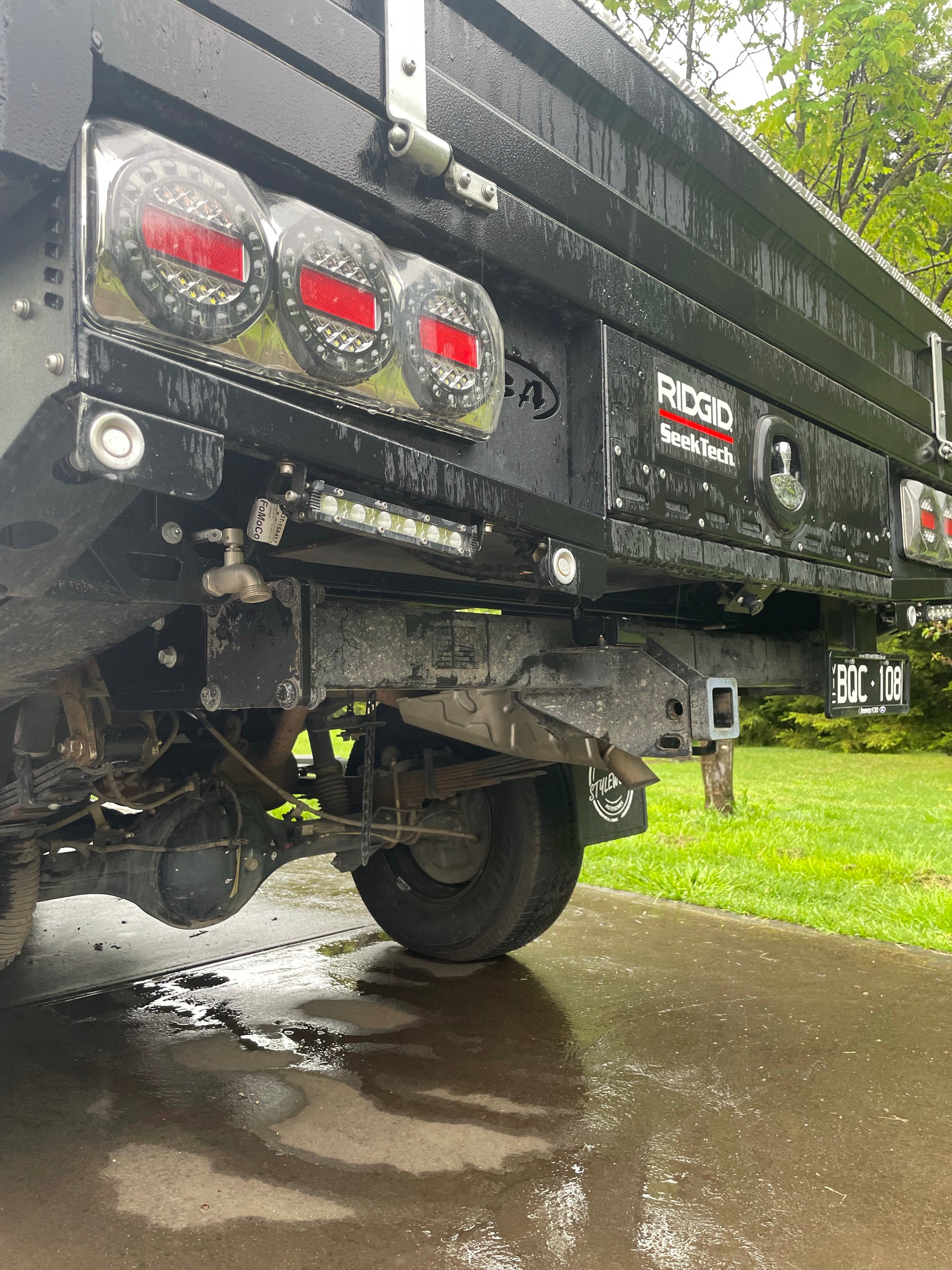

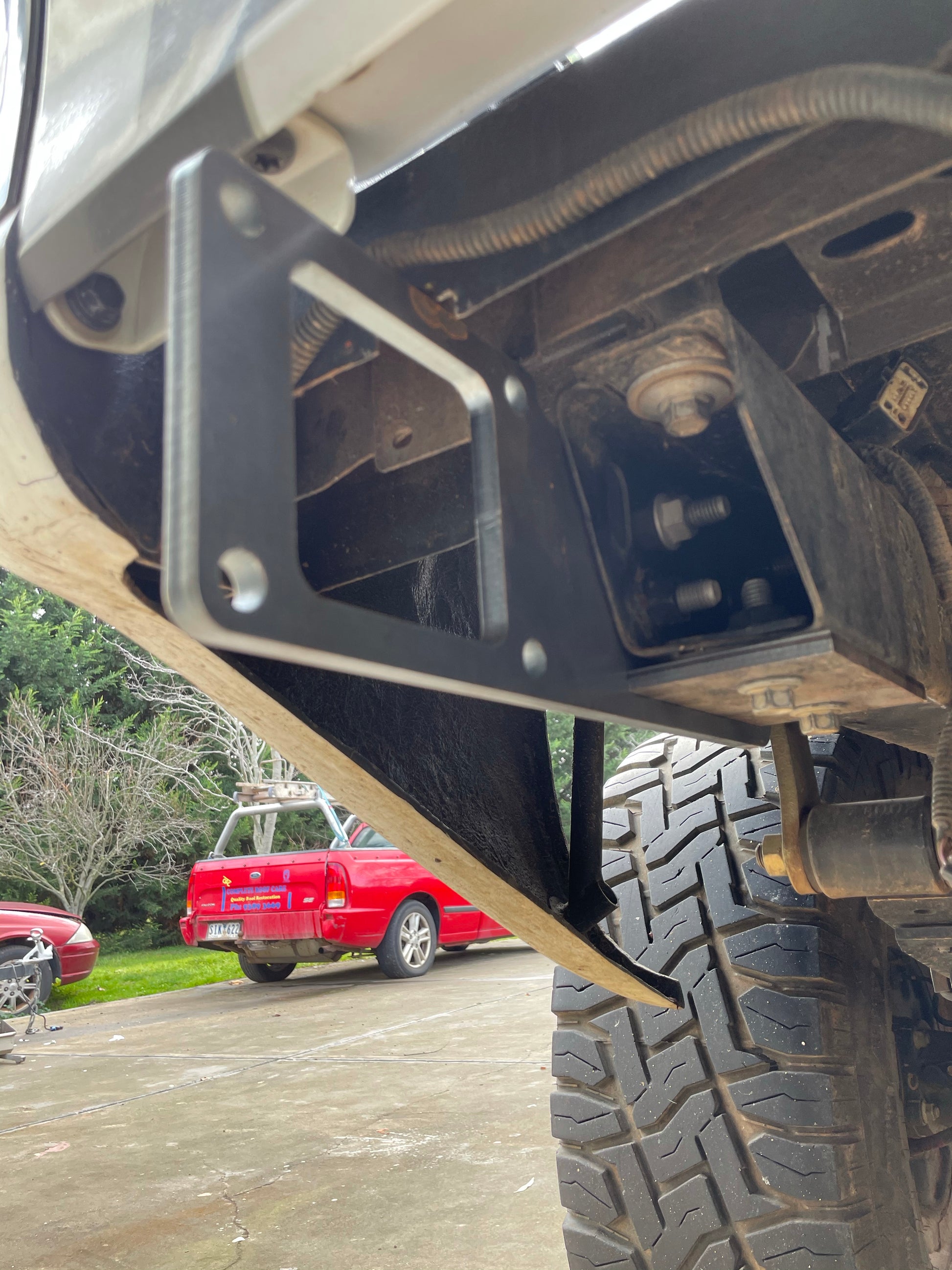

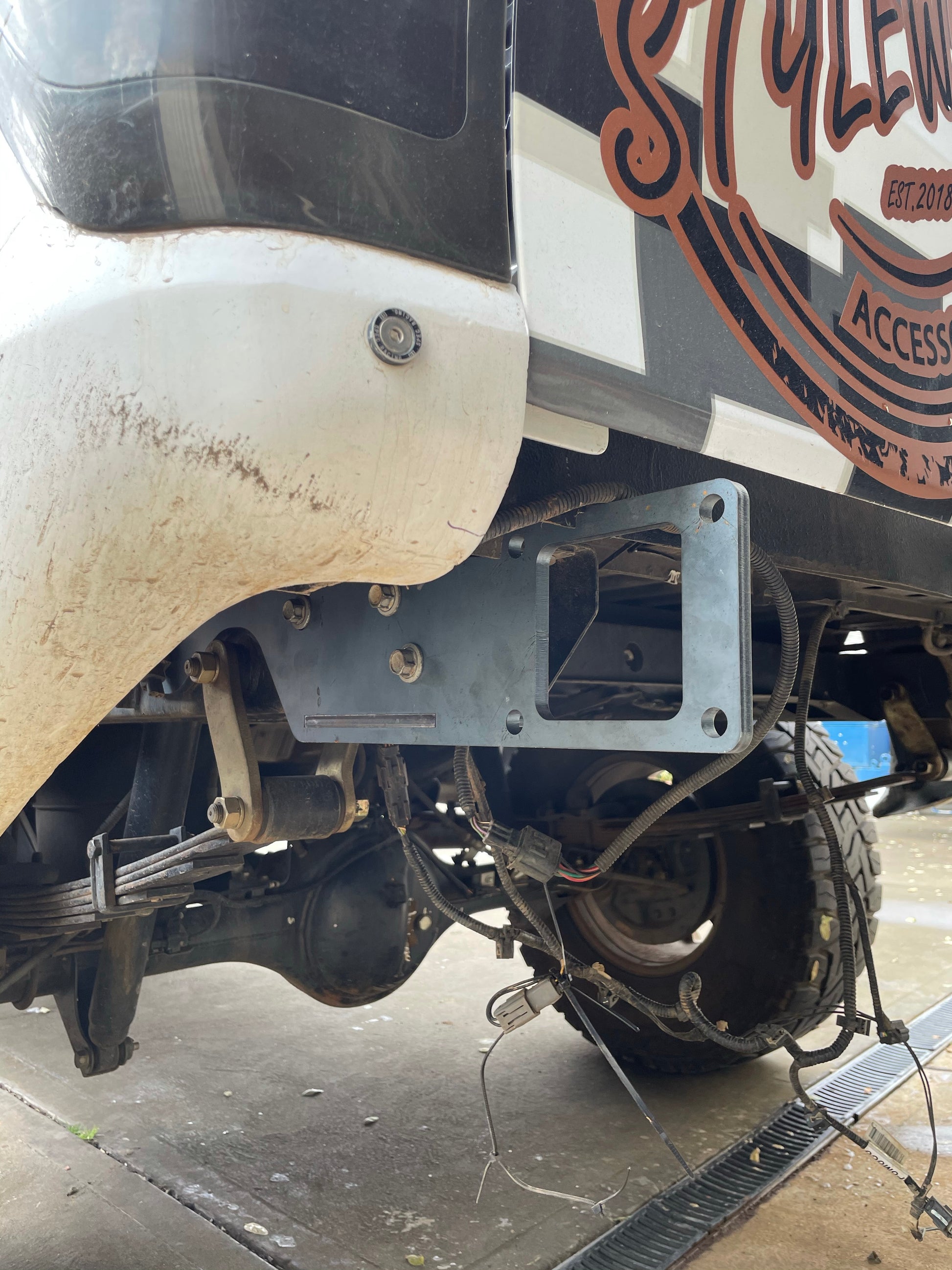

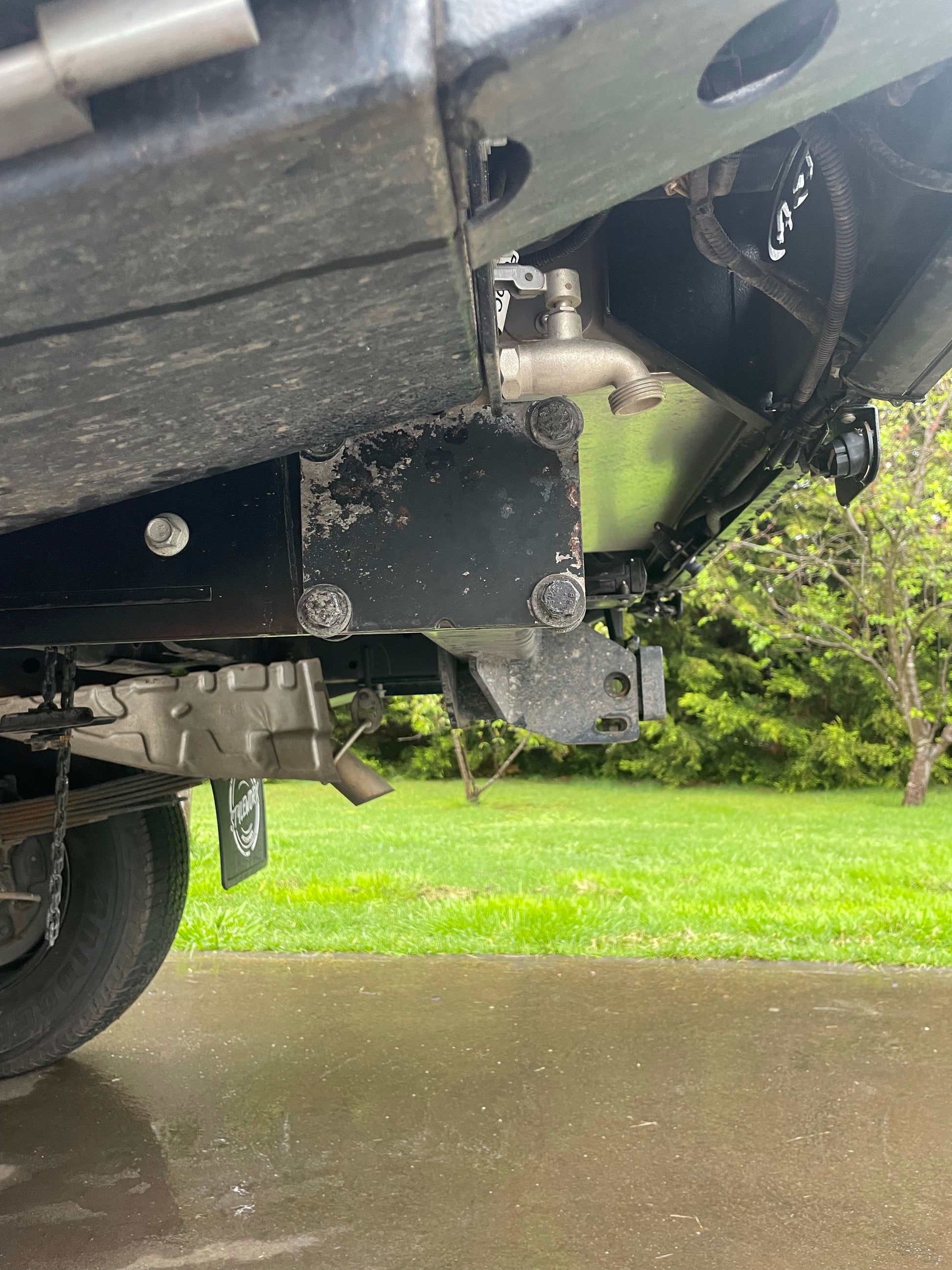

Our brackets have been designed as a visual modification to lift the tow bar in line with the chassis rails.

Raises towbar 120mm higher than factory and moves 60mm further away from diff.
This allows a 35” tire to be mounted underneath in the spare tire carrier.

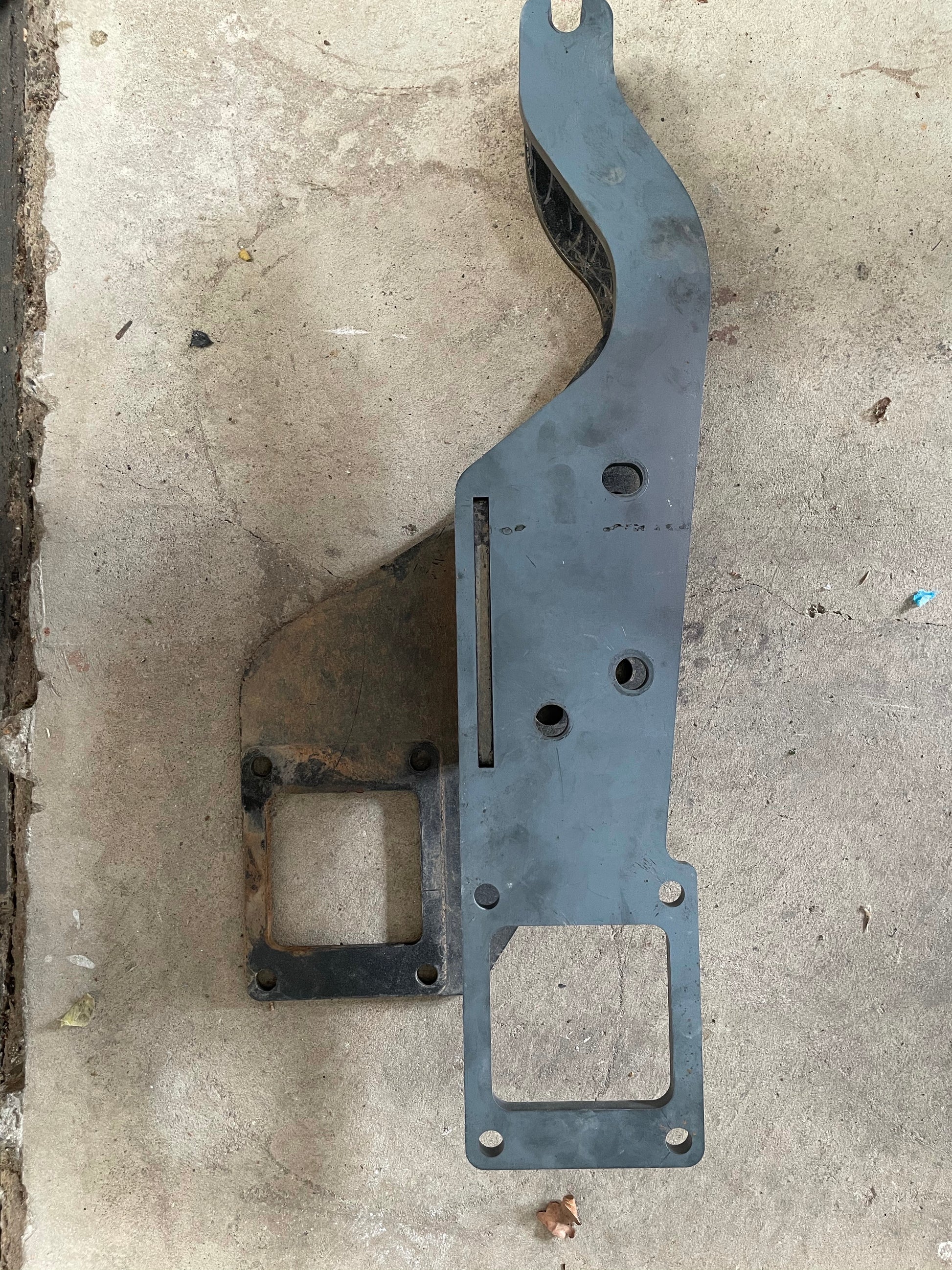

The brackets utilizes many design cues that the factory Mazda/Ford brackets used to ensure it meets, if not exceeds structural integrity.** (Factory brackets are 6mm steel plate whereas our brackets are 10mm plate. Due to the bracket moving the fulcrum point of the tow bar, it is advised you contact an engineer to certify this modification.)
The brackets will be powder coated satin black. Some slight design improvements may be made prior to shipping to customers. Bottom chassis rail brace plates will be added to the bracket to mimic the factory design.

**NOTE: The built in recovery points are not rated recovery points. Styleworx accepts no liability for injury or damage caused to persons or vehicles as a result of any product failure associated with or in connection to these brackets. By purchasing these brackets, you expressly acknowledge the existence of this exclusion clause and accept that it is solely your responsibility to ensure this product is used in a safe and cautious manner, and that the onus for any injury or damage caused to persons or vehicles is solely your responsibility.
Styleworx strongly recommends that you seek advice from an accredit engineer before using this product for its intended purpose.**
